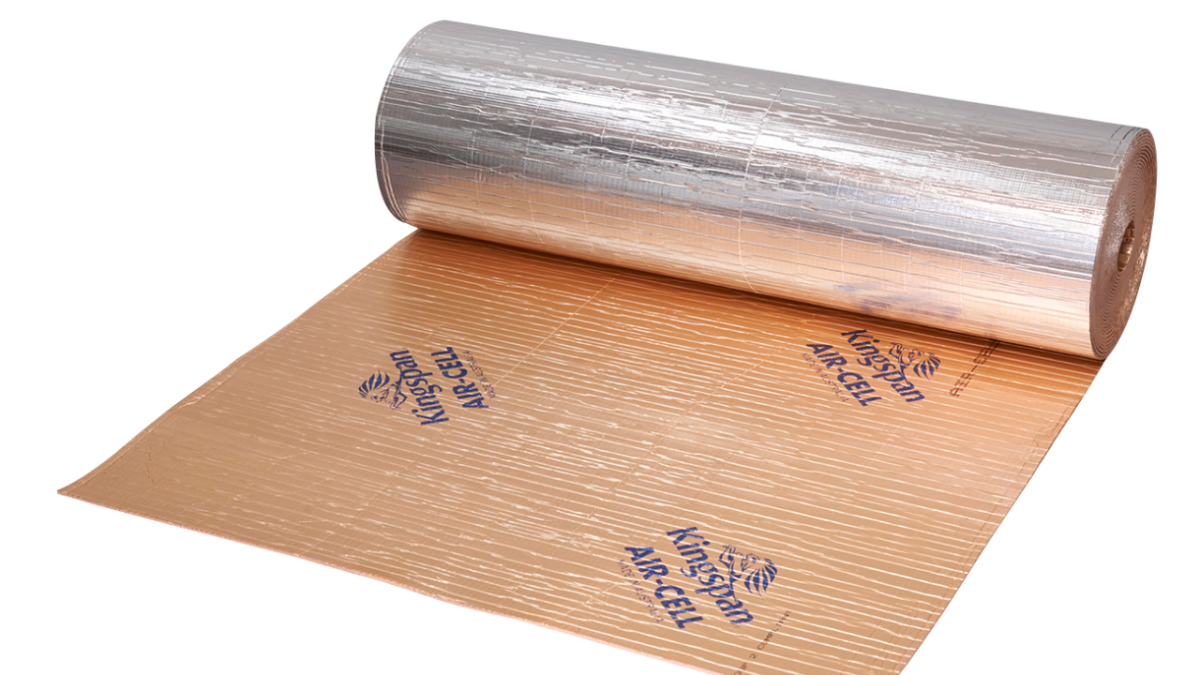

AIR-CELL Insuliner

WALL INSULATION

AIR-CELL Insuliner is the latest in thermo reflective insulation technology with the most advanced fire performance characteristics, achieving a Group 2 classification to NCC fire ratings for wall and ceiling linings. It comprises a cross-linked, closed-cell insulation core sandwiched by highly reflective foil facings. AIR-CELL Insuliner is strong, tough & durable, and a 3-in-1 vapour barrier and radiant barrier reflective insulation designed for warehouses and commercial or industrial sheds.

Product Highlights

• Australian made
• Group 2 NCC fire classification
• The Kingspan AIR-CELL Insuliner is suitable for low rise structures
• For consideration in high-rise buildings, please contact Kingspan Insulation’s Technical Services Team
• 3-in-1 insulation, vapour barrier and radiant barrier
• CodeMark-certified for NCC compliance
• NCC 2019 and AS/NZS 4859.1:2018 compliant
• Fibre-free
• Designed for warehouses and commercial or industrial sheds where the insulation acts as the wall or ceiling lining

Roll Size

1350 mm x 22.25 m (30 m²)

Roll Diameter

400 mm

Nominal Product Thickness

5.5 mm

Roll Weight

9 kg

Max. Span Distance

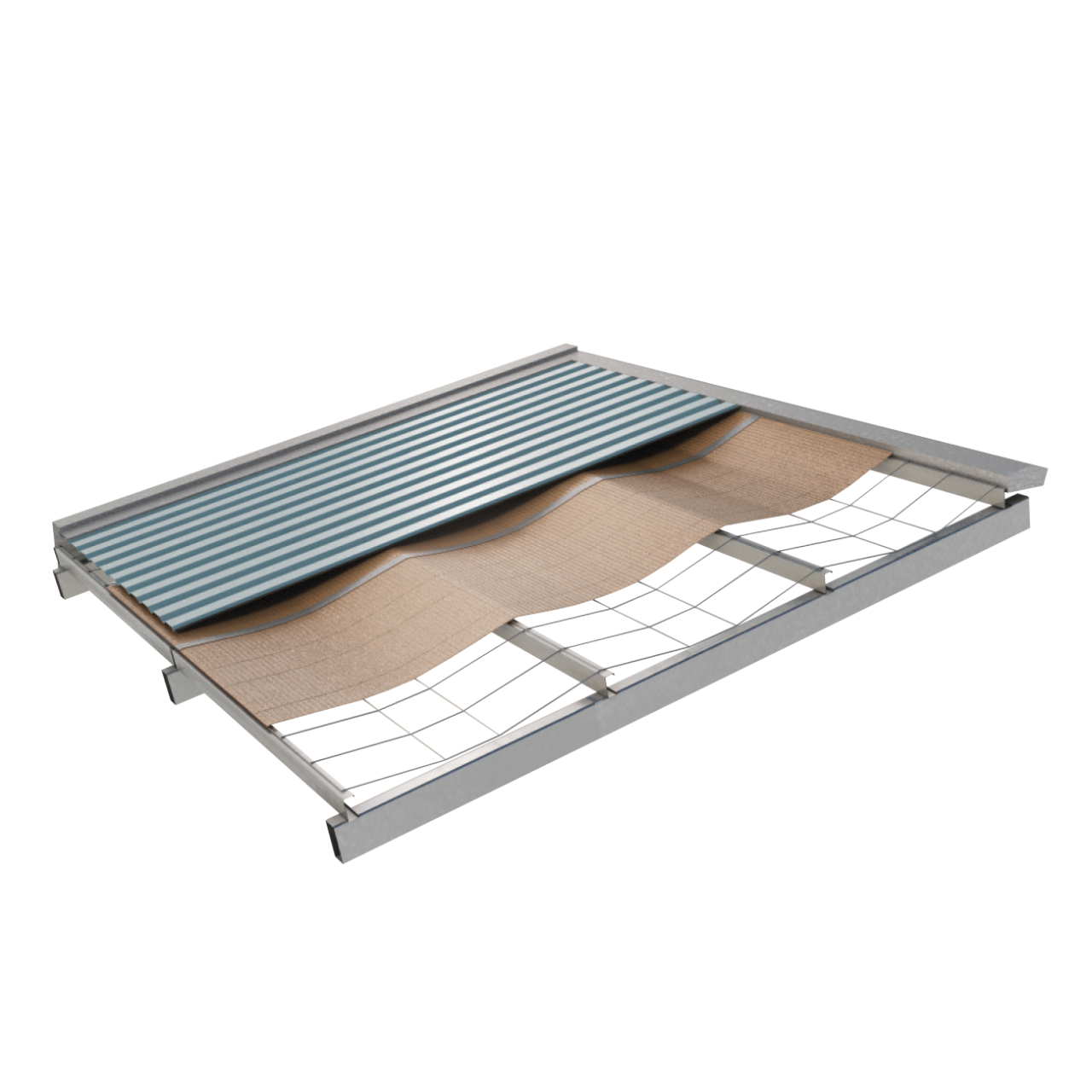

1200 mm under sheet roof without support mesh

Fire Performance
